Series JH 150/170

Flow Transducers Junction/Housing


The Chatlos JH 150/170 Series is a combination flow/pressure transducer housing with a 25 pair common splicing stub and spare parts for each of the five transducer positions.

Designed for UG/Manhole installation the durable JH 150/170 Provides for the connection of up to five CSI Model 150 Flow Transducers or up to five CSI Model 172F Pressure Transducers in any combination.

The compact, pre-assembled JH 150/170 speeds installation and simplifies splicing where multiple flow and/or pressure transducers are needed.

  • Provides common splice for up to five CSI Model 150 Flow Transducers
  • Spare pairs eliminate need for separate junction box
  • Durable tin plated bronze construction
  • Convenient talk pair access
  • Factory pre-assembled to speed installation
  • Accepts CSI Model 172F Pressure Transducer

SPECIFICATIONS

Cable Stub15 ft., 25 air, 22 AWG, PIC, TEL-U Type sheath
MaterialTin plated bronze
Weight15 lbs to 35 lbs depending on configuration
Dimensions5 1/4" H x 5" W x 22 1/8" L

The 15 foot, 25 pair cable stub is internally connected in the following manner:

Primary pairSpare pairChannel hole No.
BLK/BLU-TALK PAIR
WHT/BLURED/BLU1
WHT/ORNRED/ORN2
WHT/GRNRED/GRN3
WHT/BRNRED/BRN4
WHT/SLARED/SLA5
YEL/BLUYEL/GRN6

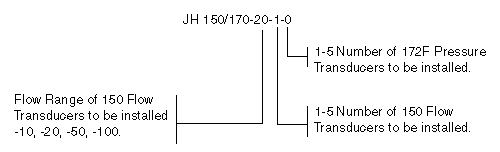

ORDERING GUIDE
